Blue Sea 3130 SMS Panel Enclosure wMain 3 Branch 15A 120V AC 3130

Blue Sea 3130 - SMS Panel Enclosure w/Main 3 Branch (15A) - 120V AC [3130]

Authorized Blue Sea Systems Dealer
Genuine Product
Save $228.00 Save $228.00
$720.99
$720.99 - $720.99
$720.99
$492.99
$492.99 - $492.99
$492.99
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 3 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

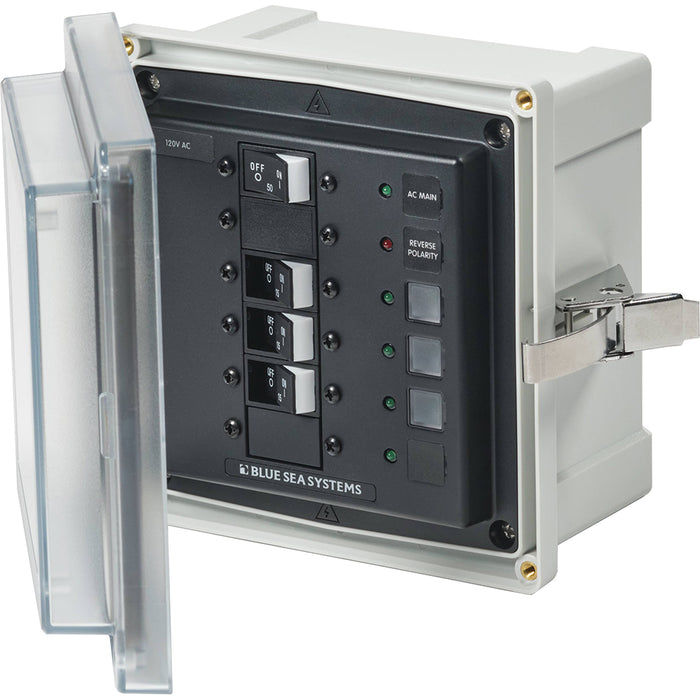

3130 - SMS Panel Enclosure with Main & 3 Branch (15A) - 120V AC

The 3130-panel enclosure is built with UL-489 Circuit Breakers to meet CFR 46 / Coast Guard requirements.

Features:

  • Blank apertures for custom breaker loading
  • Glass-filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for backlighting and ON indication

Technical

Specifications:

  • Circuit Breaker Type - 1 x 120V Main and 3 x Branch (15A)
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
  • Dimensions  (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 1 x Red (Reverse Polarity - 120V AC and 5 x Green ON (120V AC)

In the Box:

  • 3130 Enclosure
  • Glands x 4
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual


Quick Guide (PDF)

Brochure (PDF)
