Actisense Rear Panel Mount NMEA2000 Wired Micro 5Pin Female A2KPMWF

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female [A2K-PMW-F]

Authorized Actisense Dealer
Genuine Product
Save $2.34 Save $2.34
$23.34
$23.34 - $23.34
$23.34
$21.00
$21.00 - $21.00
$21.00
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 4 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • FREE shipping on orders $75+
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

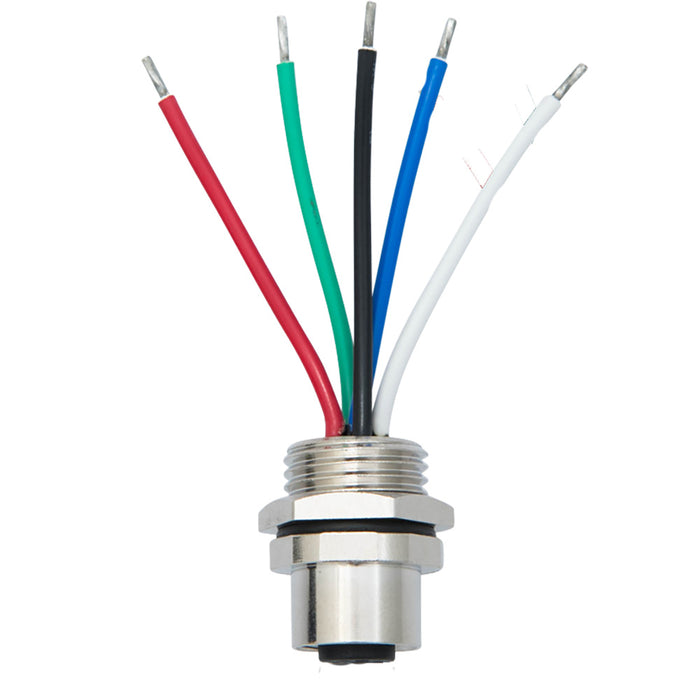

Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female

Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.

Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.

The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.

The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.

Technical Specifications:

Electrical

  • Rated Current - 4A
  • Rated Voltage - 60VDC

Mechanical

  • Contacts - Brass, gold-plated
  • Contact Carrier - Nylon & GF
  • Contact Polarization - Standard M12-"A"-Polarization
  • Mating Thread - M12
  • Housing - Brass, nickel-plated
  • Mounting Thread - PG9
  • Mounting Nut - Brass, nickel plated - PG9
  • Mounting Hole Diameter - 15.3mm
  • Wires - 18 AWG (stripped and tinned)
  • Wire Jacket - PVC
  • Weight - 20g

Approvals and Certifications

  • Protection - IP67 (when mated)
  • Operating Temperature - -25°C to +90°C
  • Connector Specification - Meets IEC61076-2-101
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications:

  • Connection Gender: Female
  • Data Interface: NMEA 2000
  • Box Dimensions: 1"H x 1"W x 5"L WT: 0.05 lbs
  • UPC: 5060998710157

Owner’s Manual (PDF)

Brochure (PDF)
