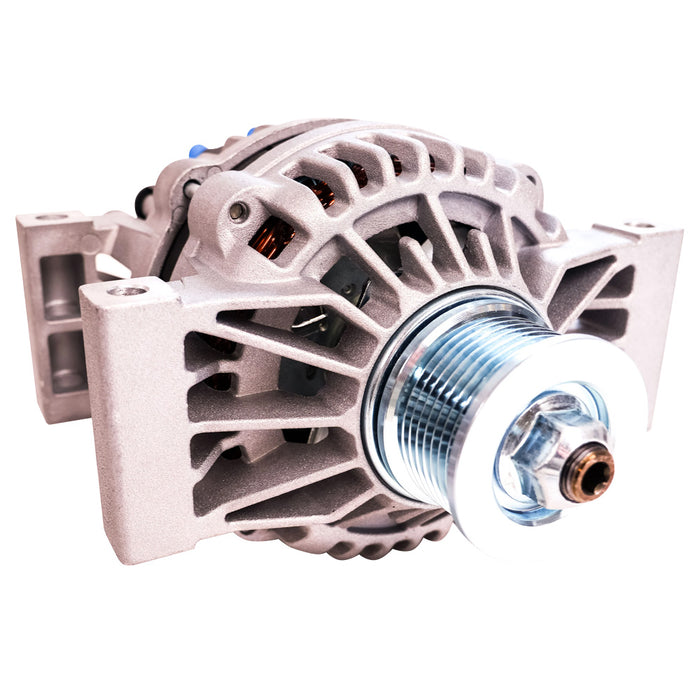

ARCO Marine Zeus A2203000W 12V HD High Output Alternator Pad Mount 4044

ARCO Marine Zeus A220/3000W 12V HD High Output Alternator - Pad Mount [4044]

Authorized ARCO Marine Dealer
Genuine Product
Save $239.00 Save $239.00
$1,167.00
$1,167.00 - $1,167.00
$1,167.00
$928.00
$928.00 - $928.00
$928.00
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 2 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

Zeus A220/3000W 12V HD High Output Alternator - Pad Mount

ARCO Zeus Heavy Duty Alternator is engineered for maximum output and extended-duty performance in demanding marine and diesel applications. Delivering the highest power output in its class, this high-amperage alternator is built to rapidly charge large battery banks and support high electrical loads with confidence.

Zeus Heavy Duty operates at exceptionally cool temperatures thanks to dual internal cooling fans, ensuring sustained performance, extended service life, and reliable power production over long run times. Its high-energy output reduces reliance on onboard generators by producing more usable power directly from your engine.

Features:

  • Replace your noisy generator
  • Designed for Extended Duty Operation
  • Engineered for high energy production
  • Rapidly charges large battery banks
  • Coolest operating temperatures for increased performance, with dual internal fans
  • Reduces the need for a generator by creating additional power with your engine
  • External Regulation Required
  • SAE J1171 Certified

Regulation:

  • External Only (EX): These units will come with a terminal block and a P-Type harness. They will only work with an external regulator, such as an ARCO Zeus Bluetooth alternator regulator.

Specifications:

  • Voltage: 12V
  • Field Type: P
  • Rotor Poles: 12
  • Weight: 18.7 lb (8.5 kg)
  • Regulation: External Only (EX)
  • Cut-In RPM: 1,288
  • Maximum Alt RPM: 10,000
  • Rear Battery Post: M8 Thread
  • Standard Pulley: K8 59 mm
  • Shaft Diameter: 7/8 in (22.22 mm)
  • Avalanche Diodes: 50 amps
  • Max Output (Cold): 249 amps
  • Sustained Cruising Output (Hot, 6,000 RPM): 228 Amps
  • Sustained Idle Output (Hot, 3,000 RPM): 200 amps
  • Max Continuous Operating Temperature: 125°C

Brochure (PDF)
