ARCO Marine Zeus A275L N62 Alternator wClutch Pulley Regulator A275L12N62IE50K6CP

ARCO Marine Zeus A275L N62 Alternator w/Clutch Pulley Regulator [A275L-12-N62-IE-50K6CP]

Authorized ARCO Marine Dealer
Genuine Product
Save $274.01 Save $274.01
$1,192.00
$1,192.00 - $1,192.00
$1,192.00
$917.99
$917.99 - $917.99
$917.99
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 1 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

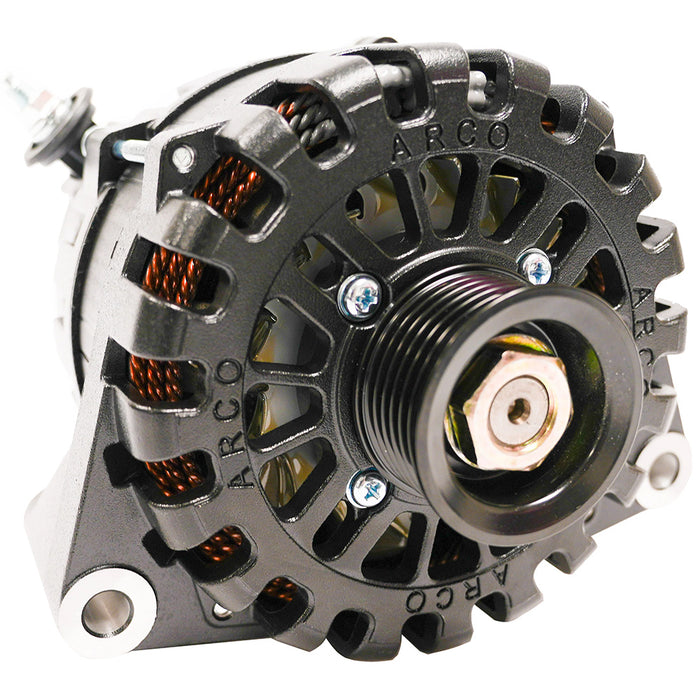

Zeus A275L N62 Alternator with Clutch Pulley & Regulator

The highest power output alternator in its size/class.

Features:

  • Engineered for High Energy Production.
  • Suitable for Marine, RV, Military, and Commercial applications.
  • Rapidly charges large battery banks.
  • Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to:

   - Heat shedding coatings

   - Rectifier located on housing exterior

   - Dual cooling fans

   - OEM Components

  • It is optimized for performance at idle speeds.
  • Reduces the need for a generator by creating additional power with your engine.
  • Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A275L cooler. This translates to more amperage for sustained periods.
  • Use an ARCO Zeus Bluetooth alternator regulator for maximum performance or lithium battery charging.
  • SAE J1171 Certified.
  • Made in the U.S.A.

Technical

Specifications:

  • Voltage - 12v
  • Field Type - P
  • Rotor Poles - 16
  • Stator Size - 138mm
  • Frame Size - Large
  • Weight - 14.9 lbs/6.7 kg
  • Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.)
  • Output Voltage - 14.1v (Default)
  • Finish - (Black) Cerakote or E-coating
  • Cut-In RPM - 1,061 Alternator RPM
  • Maximum Alt RPM - 19,000
  • Battery Post - M8 Thread Post, Side Mount
  • Standard Pulley - 49K6 (6-groove, 49mm)
  • Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
  • Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
  • Diodes - 6 positive, 6 negative, 50A Rated, Avalanche
  • Max Output (Cold, 9,000 RPM) - 311 Amps
  • Sustained Cruising Output (Hot, 6,000 RPM) - 227 Amps
  • Sustained Idle Output (Hot, 3,000 RPM) - 198 Amps
  • Max Continuous Operating Temperature - 110°C / 230°F

Mounting Application:

  • Mercedes Sprinter 1999-2006 alternators, Mercedes Sprinter Factory dual alternator 2007-Up Replacement. Replaces Roadtrek Mercedes Dual alternator
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Quick Guide (PDF)

Brochure (PDF)
