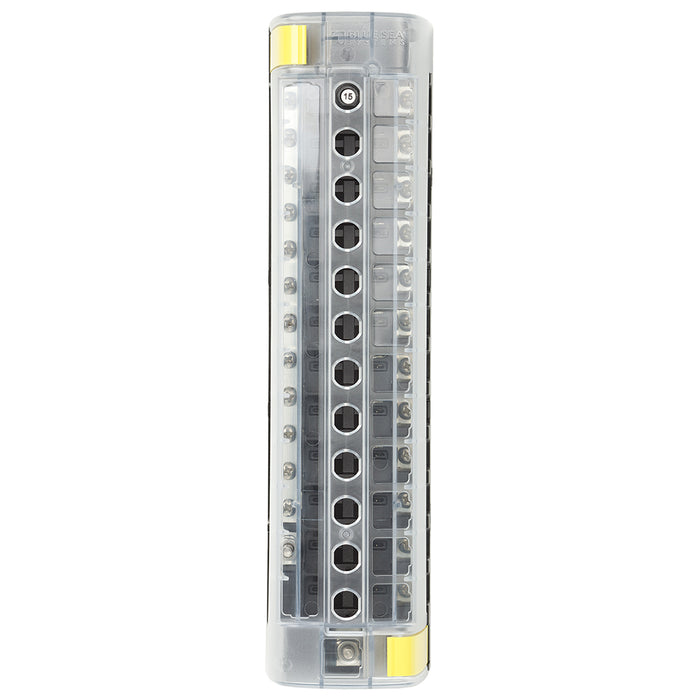

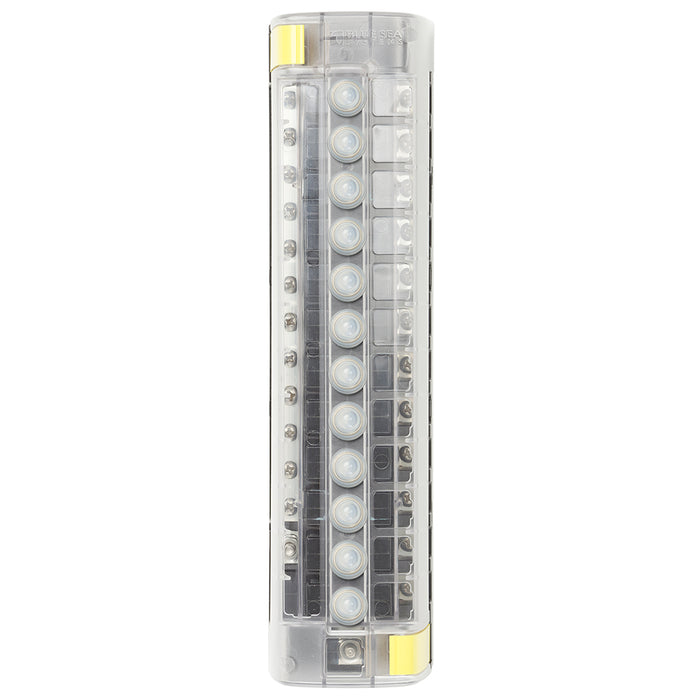

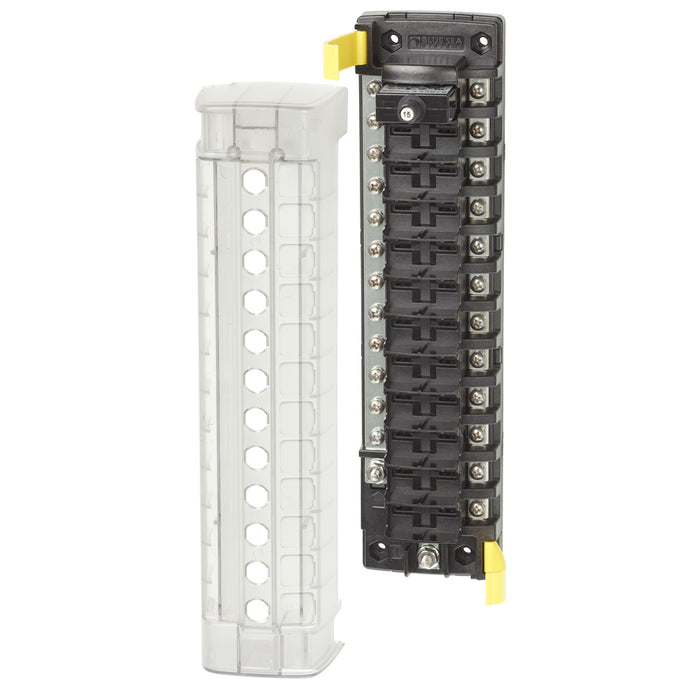

Blue Sea 5054 ST CLB Circuit Breaker Block 12 Position wNegative Bus 5054

Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus [5054]

Authorized Blue Sea Systems Dealer
Genuine Product
Save $24.00 Save $24.00
$161.99
$161.99 - $161.99
$161.99
$137.99
$137.99 - $137.99
$137.99
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
5+ in stock, ready to be shipped
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features

  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to

Brochure (PDF)

Estimated Delivery Time: 1-7 business days.

  • Orders placed before 1PM CST will ship the same day. All other orders will ship the next day.
  • Transit Time: 1-6 business days

Click here to view our full Shipping Policy.

Returns accepted within 30 days.

  • Items must be new, unused, and in original packaging.
  • Returned merchandise may be subject to a restocking fee of up to 15%

Click here to view our full Return & Refund Policy.
