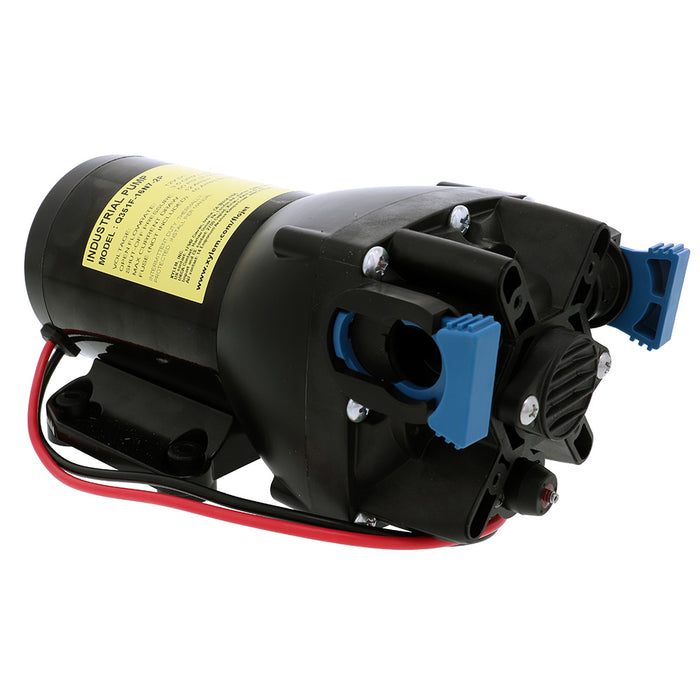

Flojet VersiJet 4 Chamber Diaphragm Pump 24V 35 GPM 50 PSI Q352F16N72P

Flojet VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI [Q352F-16N7-2P]

Authorized Flojet Dealer
Genuine Product
Save $55.00 Save $55.00
$332.99
$332.99 - $332.99
$332.99
$277.99
$277.99 - $277.99
$277.99
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
5+ in stock, ready to be shipped
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

VersiJet 4 Chamber Diaphragm Pump - 24V, 3.5 GPM, 50 PSI

Flojet VersiJet Series industrial diaphragm pump. It is engineered for durability and longevity. This Flojet pump is perfect for applications such as liquid transfer, spraying, cooling, circulation, filtration, dispensing, and more! Glass-filled polypropylene hose is resistant to corrosion. Viton seals and a Santoprene diaphragm provide resistance to chemicals and corrosion. It has quick-connect ports and includes two 1/2" straight hose barbs.

Features:

  • Heavy-duty, coated motor
  • Long-life co-molded diaphragm
  • Efficient, quiet operation
  • Self-priming
  • Runs dry without damage
  • 4-chamber diaphragm
  • Quick-connect ports
  • TENV permanent magnet motor
  • Noise-dampening baseplate
  • Thermal motor protection (TCO)

Applications:

  • Liquid Transfer
  • Spraying
  • Cooling
  • Circulation
  • Filtration
  • Dispensing

Specifications:

  • Product Number: Q352F-16N7-2P
  • Port Fittings: 2 x 1/2" (13mm) straight hose barb
  • Open Flow Rate: 3.5 GPM open flow (13.2 LPM)
  • Pressure Switch Cut-Off: No switch
  • Max Operating Pressure: 50 PSI (3.4 BAR)
  • Max Inlet Pressure: 30 PSI (2.2 BAR)
  • Internal Bypass: Yes
  • Fluid Temperature Range: 32° F - 140° F (0° C - 60° C)
  • Self-Priming Capability: Up to 8ft (2.4m) dry prime
  • Run-Dry Capable: Yes
  • Nominal Voltage: 24 VAC
  • Max Current Draw: 5.3 Amps @ 50 PSI (3.4 BAR)
  • Fuse Size: 7 Amps (not included)
  • Duty Cycle: Intermittent
  • Leads: 12" (305mm), 14 AWG (2.5mm^2)
  • Wire Connection: Stripped wire
  • Weight (pump only): 5.1 lbs.

Materials:

  • Upper Housing: Glass-filled polypropylene
  • Lower Housing: Cast aluminum
  • Check Valve Retainer: Polypropylene
  • Diaphragm: Santoprene
  • Check Valves: Viton
  • Switch diaphragm: Viton
  • Bypass Diaphragm: Viton
  • PH Seals: Viton
  • PH Fasteners: Stainless steel
  • Baseplate: Nylon with Rubber Feet
  • Motor Casing: Cast aluminum; coated steel

No manual is available for this product.
