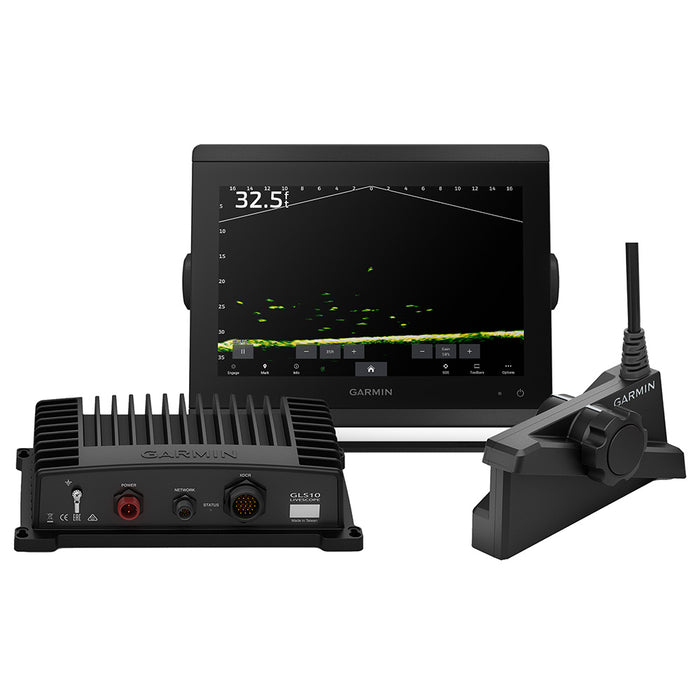

Garmin LiveScope Plus Ice House System [020-00332-00]

LiveScope™ Plus Ice House System

Upgrade your on-ice experience with the GPSMAP® 8610xsv chartplotter, LiveScope Plus System, and everything else you’ll need to catch more fish.

Features:

• 10” full HD IPS touchscreen display
• Share to your TV or external display via HDMI output (HDMI cable not included)
• LiveScope™ forward and LiveScope™ down modes
• Preloaded with Garmin Navionics+™ mapping of 25,000+ inland and coastal lakes

GPSMAP® 8610xsv

This chartplotter features a 10” full HD IPS display with touchscreen and HDMI output, so you can display sonar on your TV or external display.

Ice House System

Get a GLS™ 10 sonar black box with a swivel pole mount and an LVS34-IF transducer, which features a transducer cable that stays flexible — even in freezing conditions.

LiveScope Modes

With an included 0-degree pole mount, the transducer can quickly switch between LiveScope Forward and LiveScope Down modes to adapt to your fishing technique.

Garmin Navionics+ Maps

You get preloaded Garmin Navionics+ maps for exceptional detail on more than 23,000 U.S. lakes.

Custom Combos

You can create custom pages that combine sonar, flashers, and maps on your display.

Built-In Sonar

See below and around your boat with built-in sonar capabilities, whether you’re on the ice or the open water.

In the Box:

• GPSMAP 8610xsv with preloaded Garmin Navionics+™ Coastal Charts and Inland Mapping for U.S. or Canada
• LiveScope Plus LVS34-IF transducer
• GLS™ 10 black box sonar module with power and network cables
• Ice fishing pole mount
• Documentation

General Specifications:

• Dimensions: 10.25 x 8.0625 x 2.95 in. / 25.9 x 20.5 x 7.5 cm
• Touchscreen: Yes
• Input: Touchscreen
• Display Size: 8.6 x 5.4 in., 10.1" in. diagonal / 21.8 x 13.7 cm; 25.7 cm diagonal
• Display Resolution: 1920 x 1200 pixels
• Display Type: WVGA, IPS
• Weight: 15.4 lbs / 7.0 kg
• Waterproof: IPX7

Maps & Memory:

• Accepts Data Cards: 2 microSD™ cards
• Waypoints: 5000
• Track Points: 50,000
• Tracks: 50 saved tracks
• Navigation Routes: 100

Ice Fishing Details:

• Bag Size: None
• Included Transducer: LiveScope™ Plus System with LVS34-IF
• Transducer Holding Feature: Pole mount

Sensors:

• Has Built-in Receiver: Yes
• Receiver: 10 Hz
• NMEA 2000 Compatible: Yes
• GPS: Yes
• Glonass: Yes
• Galileo: Yes
• Supports Waas: Yes

Built-in Maps:

• Built-in Auto Guidance+: Yes (downloadable via ActiveCaptain app)

Optional Map Support:

• Bluechart G3: Yes
• Bluechart G3 Vision: Yes
• Lakevü G3: Yes
• Lakevü G3 Ultra: Yes
• Garmin Navionics+: Yes
• Garmin Navionics+ VIision+™: Yes
• TOPO: Yes
• Standrad Mapping: Yes
• Garmin Quickdraw Contours: Yes
• Raster Chart Support: Yes

Chartplotter Features:

• ActiveCaptain® Compatable: Yes

Electrical Features:

• Power Input: 10 to 32 Vdc

Sonar Features & Specifications:

• Displays Sonar: Yes
• Power Output: 1 kW
• Traditional Sonar (Dual Frequency/Beam): Built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
• ClearVü™: Built-in 260/455/800/1000/1200 kHz
• SideVü™: Built-in 260/455/800/1000/1200 kHz
• Panoptix™ Sonar: Yes
• Livescope; Yes

Connections:

• NMEA 2000® Ports: 1
• Video Input Ports: 1 (BNC composite); 1 HDMI (HDCP compliant)
• Video Output Ports: 1 HDMI
• Garmin Marine Network Ports: 2
• 8-Pin Transducer Ports: Yes
• 12-Pin Transducer Ports: Yes
• Bluetooth® Pairing: Yes
• Ant+ (Connectivity): Yes
• Garmin Wi-Fi Network (Local Connection): Yes
