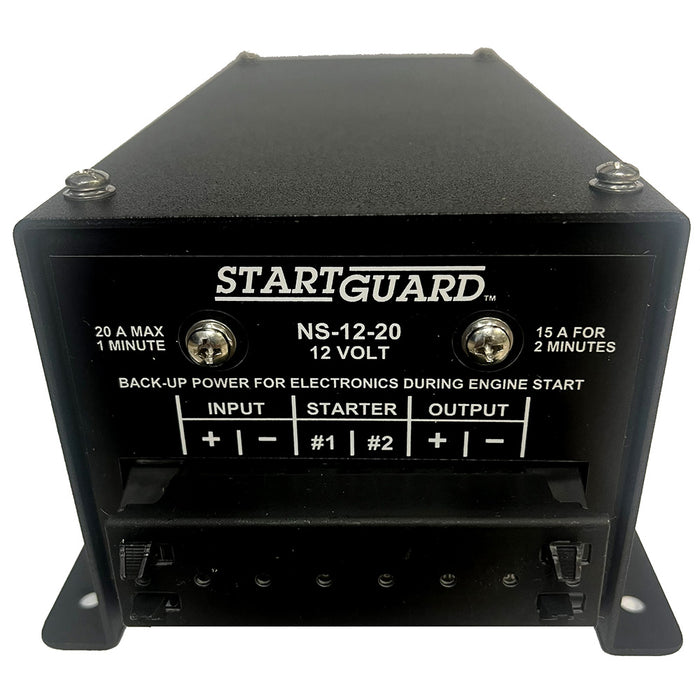

Newmar NS1220 StartGuard NS1220

Newmar NS-12-20 StartGuard [NS-12-20]

Authorized Newmar Power Dealer
Genuine Product
Save $18.01 Save $18.01
$365.00
$365.00 - $365.00
$365.00
$346.99
$346.99 - $346.99
$346.99
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
5+ in stock, ready to be shipped
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

NS-12-20 StartGuard

The abrupt DC system voltage drop that accompanies engine starting can cause micro-processor-driven electronics aboard vehicles or vessels to "dump" programmed memory. StartGuard solves these problems by providing supplemental power to sensitive electronics while the engines are cranking. Newmar's NS-12-20 StartGuard supplies backup power for electronics during engine start.

Mounting

Mount the StartGuard in any convenient location, such as under the dash or console, using the four mounting screws provided or #10 bolts.

Wiring

Input from the power source to the electronics must be routed through the StartGuard.

Specifications:

  • Input Voltage: 13.8-14.8 VDC nominal, 15.5 VDC Max
  • Relay Activation Input Voltage: 7-15 VDC
  • Output: 20 Amps Max
  • Battery: 12 VDC, 4.0 Amp/Hour, Sealed Rechargeable, 3-5 Year Life (Typical)
  • Backup Capacity (Fully Charged): 20 Amps for one minute/18 Amps for 2 minutes
  • Operating Temperature Range: 0-40 degrees Celsius
  • Winter Storage Temperature Range: -20 degrees to +40 degrees Celsius
  • Dimensions: 8.25" x 4.9" x 3.5"
  • Weight: 5.5 lbs
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

No manual is available for this product.
