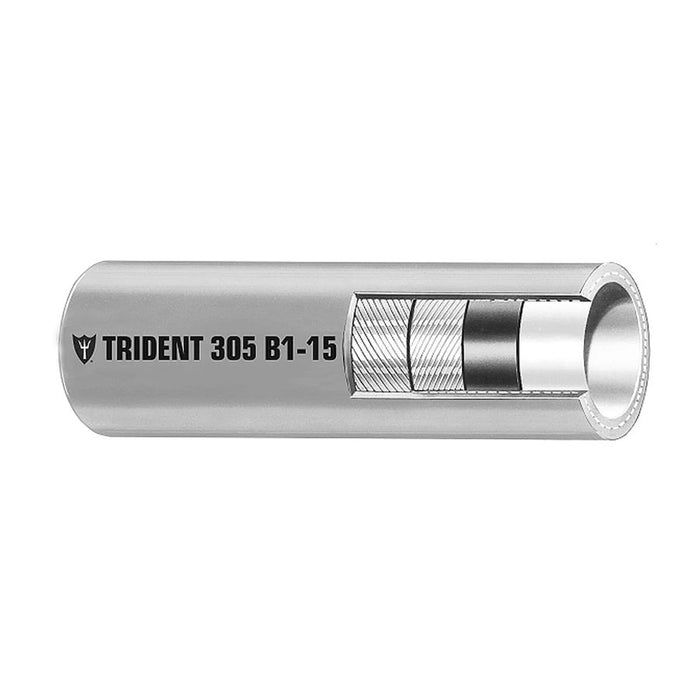

Trident Marine 38 x 50 Boxed Barrier Lined B115 EPA Compliant Outboard Fuel Line Hose Gray 3050386

Trident Marine 3/8" x 50 Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray [305-0386]

Authorized Trident Marine Dealer
Genuine Product
Save $55.23 Save $55.23
$202.22
$202.22 - $202.22
$202.22
$146.99
$146.99 - $146.99
$146.99
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 5 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

3/8" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray

This hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so the fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year.

Features:

  • Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone
  • Also, provides excellent rope-like bend-ability and fitting retention
  • For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%)
  • EPA Certified and CARB Executive Order for low permeation Type B1-15
  • NMMA Type Accepted & CE certified

Application:

  • Marine Fuel Hose for distribution, return, vent and transfer
  • For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

  • Tube: Fluoroplastic Internal Barrier
  • Cover: Gray CPE Rubber
  • Reinforcement: 2-Spiral Polyester Plies
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50’ (15m) Boxed

Specifications:

  • Inner Diameter: (inch) 3/8" / (mm) 9.50
  • Outer Diameter: (inch) 0.588 / (mm) 14.9
  • Burst Pressure: (psi) 175 / (mpa) 1.21
  • Working Pressure: (psi) 35 / (mpa) 0.24
  • Bend Radius: (inch) 4" / (mm) 101.6
  • Weight: (lb/100 ft.) 10.5 / (kg/m) 0.156
  • Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15

Specifications:

  • ID Diameter (inches): 3/8"
  • Length (Feet): 50'
  • Box Dimensions: 3"H x 18"W x 18"L WT: 6.4 lbs
  • UPC: 704917018065
