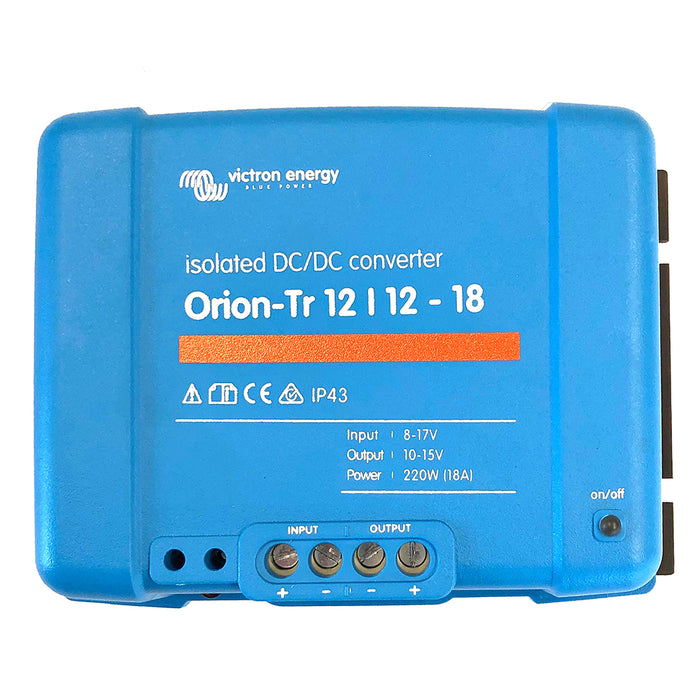

Victron Orion-TR DC-DC Converter - 12 VDC to 12 VDC - 18AMP Isolated [ORI121222110]

Specifications:

• Input Voltage Range: 8-17 V
• Under Voltage Shut Down: 7 V
• Under Voltage Restart: 7.5 V
• Nominal Output Voltage: 12.2 V
• Output Voltage Adjust Range: 10-15 V
• Output Voltage Tolerance: +/- 0,2 V
• Output Noise: 2 mV rms
• Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 18 A
• Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
• Short Circuit Output Current: 40 A
• Cont. Output Power at 25 Degrees C: 280 W
• Cont. Output Power at 40 Degrees C: 220 W
• Efficiency: 87 %
• No Load Input Current (2): < 80 mA
• Current Consumption: < 200uA when disabled via its remote port
• Galvanic Isolation: 200 VDC between input, output, and case
• Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
• Humidity: Max. 95 % non-condensing
• DC Connection: Screw terminals
• Maximum Cable Cross-Section: 16 mm² AWG6
• Weight: 1.3 kg (3 lb)
• Dimensions (H x W x D): 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
• Safety Standards: EN 60950
• Immunity Standards: EN 61000-6-3, EN 61000-6-1, EN 55014-2
• Automotive Directive Standards: ECE R10-5
