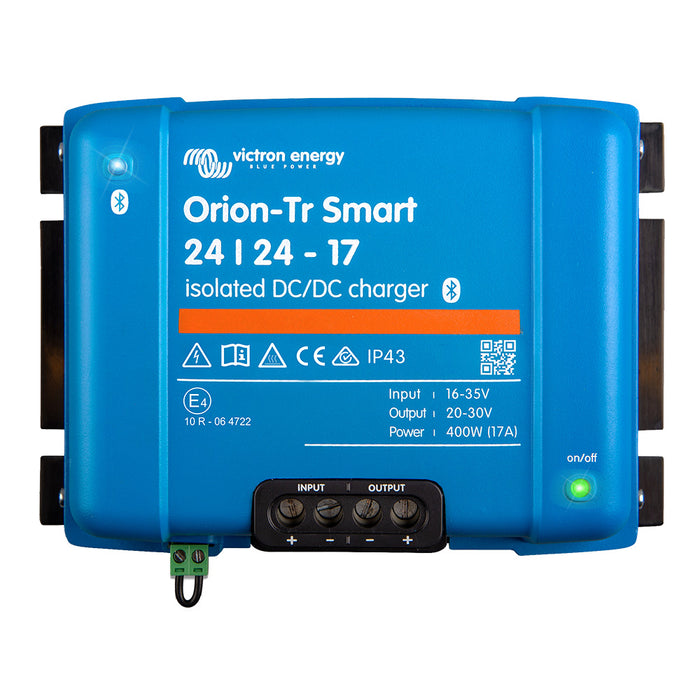

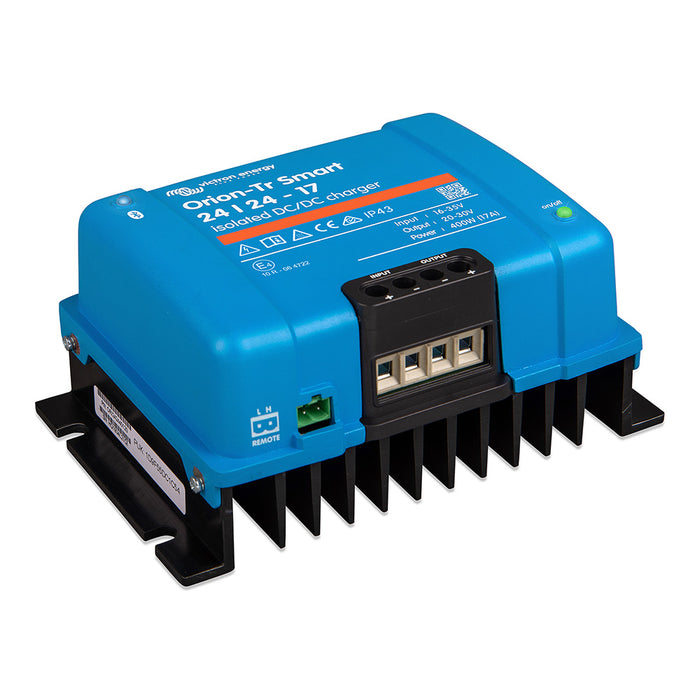

Victron OrionTR Smart Isolated DCDC Converter 24 VDC to 24 VDC 400W 17AMP ORI242440120

Victron Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP [ORI242440120]

Authorized Victron Energy Dealer
Genuine Product
Save $43.05 Save $43.05
$287.00
$287.00 - $287.00
$287.00
$243.95
$243.95 - $243.95
$243.95
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
5+ in stock, ready to be shipped
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

Orion-TR Smart Isolated DC-DC Converter - 24 VDC to 24 VDC - 400W - 17AMP

The Orion-Tr Smart DC-DC charger is a professional DC-to-DC adaptive 3-stage charger with built-in Bluetooth.

Bluetooth Smart Enabled:

  • Any Bluetooth-enabled smartphone, tablet, or other device can be used to monitor, change settings, and update the charger when new software features become available.
  • Instant Readout: The VictronConnect App can display key data, including warnings and alarms, on the device list page without the need to connect to the product.

Fully Programmable:

  • Battery charge algorithm (configurable) or fixed output. Smart alternator compatibility: engine running detection mechanism.
  • Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float:
  • For lead-acid batteries, it is important that during shallow discharges the absorption time is kept short to prevent overcharging of the battery. After a deep discharge, the absorption time is automatically increased to make sure that the battery is completely recharged.
  • For lithium batteries, the absorption time is fixed (the default is 2 hours).
  • Alternatively, a fixed output voltage can be chosen.

Suitable for Use in Vehicles with a Smart Alternator (Euro 5 and Euro 6 Engines):

  • The built-in engine shutdown detection will stop the converter when the engine is not running. This prevents the unwanted discharge of the starter battery (see manual for details).

Remote On/Off:

  • A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively, the H terminal (right) of the two-pole connector can be switched to battery plus, or the L terminal (left) of the two-pole connector can be switched to battery minus (or the chassis of a vehicle, for example).

All Models Are Short Circuit Proof and Can Be Paralleled to Increase Output Current:

  • An unlimited number of units can be connected in parallel.

High Temperature Protected:

  • The output current will reduce at high ambient temperatures.

IP43 Protection:

  • When installed with the screw terminals oriented downward.

Screw Terminals:

  • No special tools are needed for installation.

Input fuse (not replaceable)

Specifications:

  • Input Voltage Range: 20-35 V
  • Under Voltage Shut Down: 14 V
  • Under Voltage Restart: 15 V
  • Nominal Output Voltage: 24.2 V
  • Output Voltage Adjust Range: 20-30 V
  • Output Voltage Tolerance: +/- 0,2 V
  • Output Noise: 2 mV rms
  • Cont. Output Current at Nominal Output Voltage and 40 Degrees C: 17 A
  • Maximum Output Current (10 S) at Nominal Output Voltage: 25 A
  • Short Circuit Output Current: 40A
  • Cont. Output Power at 25 Degrees C: 480 W
  • Cont. Output Power at 40 Degrees C: 400 W
  • Efficiency: 89%
  • No Load Input Current (2): < 80 mA
  • Standby Current: Less than 1 mA
  • Galvanic Isolation: 200 VDC between input, output, and case
  • Operating Temperature Range: -20 to +55 Degrees C (derate 3 % per °C above 40 °C)
  • Humidity: Max. 95 % non-condensing
  • DC Connection: Screw terminals
  • Maximum Cable Cross-Section: 16 mm² AWG6
  • Weight: 1,6 kg (3.5 lb)
  • Dimensions (h x w x d) 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inch)
  • Protection Category: IP43 (electronic components), IP22 (connection area)
  • Safety Standards: EN 60950
  • Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2
  • Automotive Directive Standards: ECE R10-5
Please contact your dealer for any returns, repairs or support issues related to this product.

Quick Guide (PDF)

Owner’s Manual (PDF)

Brochure (PDF)
