Wichard HR Bow Shackle 10mm Pin Diameter 11245W

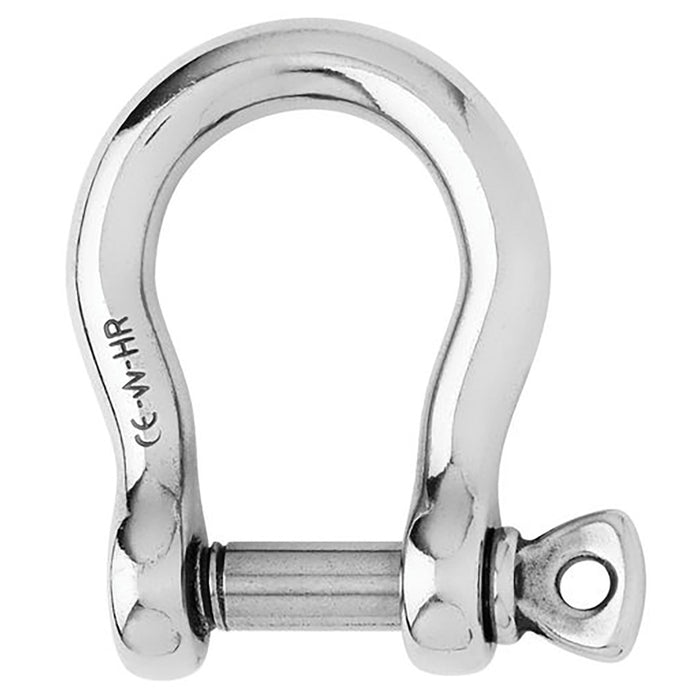

Wichard HR Bow Shackle - 10mm Pin Diameter [11245W]

Authorized Wichard Marine Dealer
Genuine Product
Save $22.87 Save $22.87
$152.49
$152.49 - $152.49
$152.49
$129.62
$129.62 - $129.62
$129.62
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 1 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

HR Bow Shackle - 10mm Pin Diameter

Features:

  • Forged bow shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • To be used when ample room is required
  • Possibility to attach several lines or cables
  • Do not use for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 5820 / (kg) 2640
  • WLL: (lb) 2640 / (kg) 1200
  • Breaking load: (lb) 13220 / (kg) 6000
  • Weight: (lb) 0.3 / (g) 136

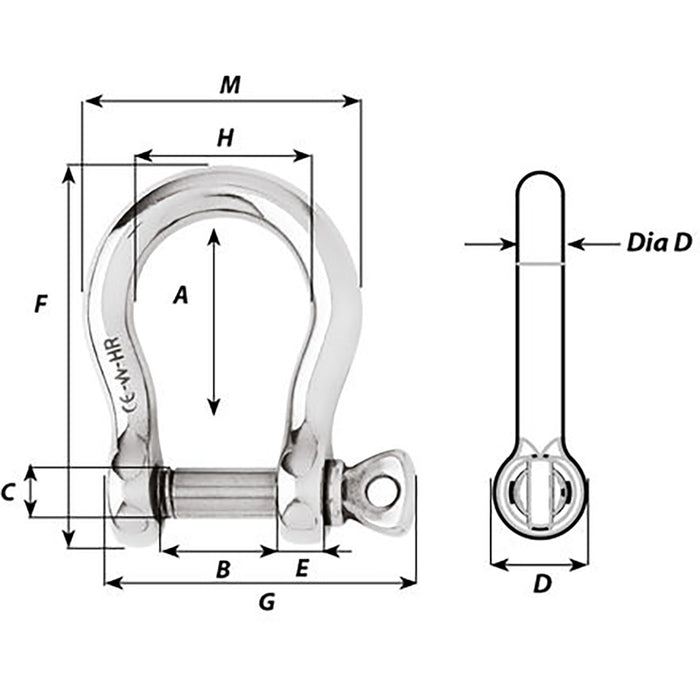

Dimensions:

  • A: (inch) 1 27/32" / (mm) 47
  • B: (inch) 55/64" / (mm) 22
  • C: (inch) 25/64" / (mm) 10
  • D: (inch) 25/32" / (mm) 20
  • D diameter: (inch) 15/32" / (mm) 12
  • E: (inch) 23/64" / (mm) 9
  • M: (inch) 2 3/64" / (mm) 52

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (PDF)
