Wichard HR Key Pin Shackle With Bar 5mm Pin Diameter 91432W

Wichard HR Key Pin Shackle With Bar - 5mm Pin Diameter [91432W]

Authorized Wichard Marine Dealer
Genuine Product
Save $10.35 Save $10.35
$69.03
$69.03 - $69.03
$69.03
$58.68
$58.68 - $58.68
$58.68
Questions? Just Call. U.S. based expert support. +1 (346) 385-4984
Availability:
Only 4 left!
Why Choose Boating Tools?
Trusted • U.S.-Based
  • Ships today or tomorrow (in-stock items)
  • Ships from U.S. warehouse with tracking
  • No sales tax (excluding Texas)
    • U.S. expert support: +1 (346) 385-4984
    Mon–Fri 9AM–5PM CST

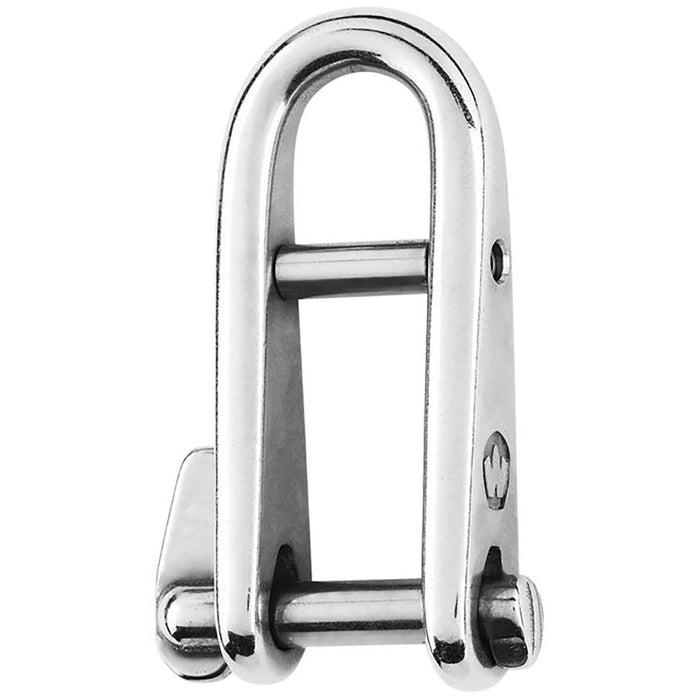

HR Key Pin Shackle With Bar - 5mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 1050 / (kg) 480
  • Breaking load: (lb) 3300 / (kg) 1500
  • Weight: (lb) 0.068 / (g) 31

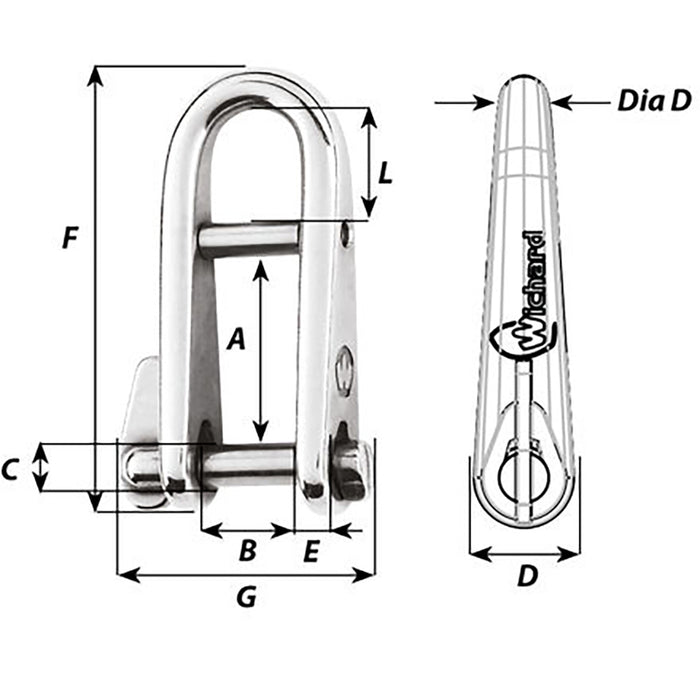

Dimensions:

  • A: (inch) 1 29/64" / (mm) 37
  • B: (inch) 33/64" / (mm) 13
  • C: (inch) 13/64" / (mm) 5
  • D: (inch) 7/16" / (mm) 11
  • E: (inch) 5/32" / (mm) 4
  • F: (inch) 1 59/64" / (mm) 49
  • G: (inch) 1 7/32" / (mm) 31
  • L: (inch) 15/32" / (mm) 12

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual


Quick Guide (PDF)
